LONYE WB24X829 WB24X830 Microwave Door Switch Replacement for GE Microwave D3V-16G-3C25 SZM-V16-FD-62

Price: $13.90 - $9.99
(as of Jul 02, 2025 15:09:06 UTC – Details)

Product Description

Door microswitch WB24X829 replaces most 2 terminal Normally Open Switches with same rating. has a positive click action when operated. It can be recognised in the oven by 16A, 250VAC. This part fixes the following symptoms:

Doesn’t shut offWon’t turn onNo heatTouchpad does not respond

WB24X829 D3V-16G-3C25 Secondary Door Switch

replaces: 253819, AP2024337, WB24X0329, WB24X0368, WB24X0384, WB24X0401, WB24X0414, WB24X0426, WB24X0429, WB24X0439, WB24X0441, WB24X0445, WB24X0796, WB24X0801, WB24X0829, WB24X10038, WB24X10076, WB24X329, WB24X368, WB24X384.works with the following brands: General Electric, Hotpoint, Kenmore Specification:

16A 1/2HP 250VAC~ 0.1A 125VDC 16(3A) 250V~2 metal prongs terminals(3/16″ Terminal)SPST ContactNormally open

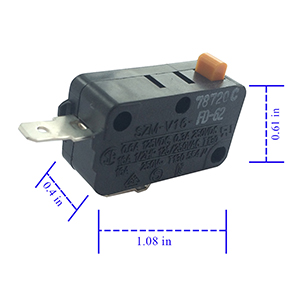

WB24x830 Monitor Switch

works in conjunction with microwave operation.will prohibit the microwave from starting when the microwave door is open.Typically if the light & turntable works or the fan & display (countdown) works but the oven doesn’t heat, it is most likely because a door switch has gone bad.

WB24x830 Microwave Switch:

Specification 0.6A 125VDC 0.3A 250VDC/ 16A 1/2HP 125/250VAC T130/ 16A 250V ~ T130 5E4u Replacing Models 253820, AP2024338, EAP237422, PS237422, WB24X0800, WB24X0830, WB24X10075, WB24X800. Working with brand General Electric, Hotpoint Fixing symptoms: Doesn’t shut off/ Won’t turn on/ No heat

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.6 out of 5 stars 314

4.0 out of 5 stars 29

4.5 out of 5 stars 1,124

3.4 out of 5 stars 2

4.5 out of 5 stars 253

Price

$9.99$9.99 $15.69$15.69 $9.57$9.57 $11.88$11.88 $7.99$7.99

Rated Current/ Voltage
16A 1/2HP 125/250VAC 16A 125/250VAC 1/3HP 125VAC 10A 30VDC 16(4)A 16A 125, 250VAC 0.6A 125VDC, 0.3A 250VDC 1/2HP 125,250VAC 16A 125/250VAC 1/3HP 125VAC 10A 30VDC 16(4)A 16A 125, 250VAC 0.6A 125VDC, 0.3A 250VDC 1/2HP 125,250VAC

Contact Arrangement
1NO+1NC 1NO+1NC 1NO+1NC+1SPDT 1NO+1NC 1NO+1NC

Fit models
GE Frigidaire Electrolux Whirlpool Bosch LG GE

Terminal Number
2 2 2&3 2 2

Max Temperature
T105 T125 T130 T125 T130

💙Package includes 1pc WB24X829 + 1 pc WB24X830 Microwave Door Switch.
💙WB24X830 replaces for 253820, AH237422, AP2024338, EA237422, PS237422, WB24X0800, WB24X0830, WB24X10075, WB24X800, LP14568
💙WB24X829 replaces for WB24X414, 253819, AH237421, EA237421, PS237421, WB24X0329, WB24X0368, WB24X0384, WB24X0401, WB24X0414, WB24X0426, WB24X0429, WB24X0439, WB24X0441, WB24X0445, WB24X0796, WB24X0801, WB24X0829, WB24X10038, WB24X10076, WB24X329, WB24X368, WB24X384, WB24X401, WB24X426, WB24X429, WB24X439, WB24X441, WB24X445, WB24X5227, WB24X5228, WB24X796, WB24X801
