gohantee 1175 Thermostat RX-1-36, 60125401 Thermostat for Fryer, Furnace Deep Fryer Thermostat Control Compatible with Pitco 60124501, Imperial 1175, Royal Range 3113-1/4′ Mpt Stuff Box, 200-400F

Price: $28.49
(as of Jul 02, 2025 13:58:44 UTC – Details)

Product Description

Manufacturing Number:

60125401

Replacement Part Number:

5300-40

RX-1-36

319

3113

11113

461272

Furnace Deep Frying Thermostat Control Part

Millivolt Thermostat

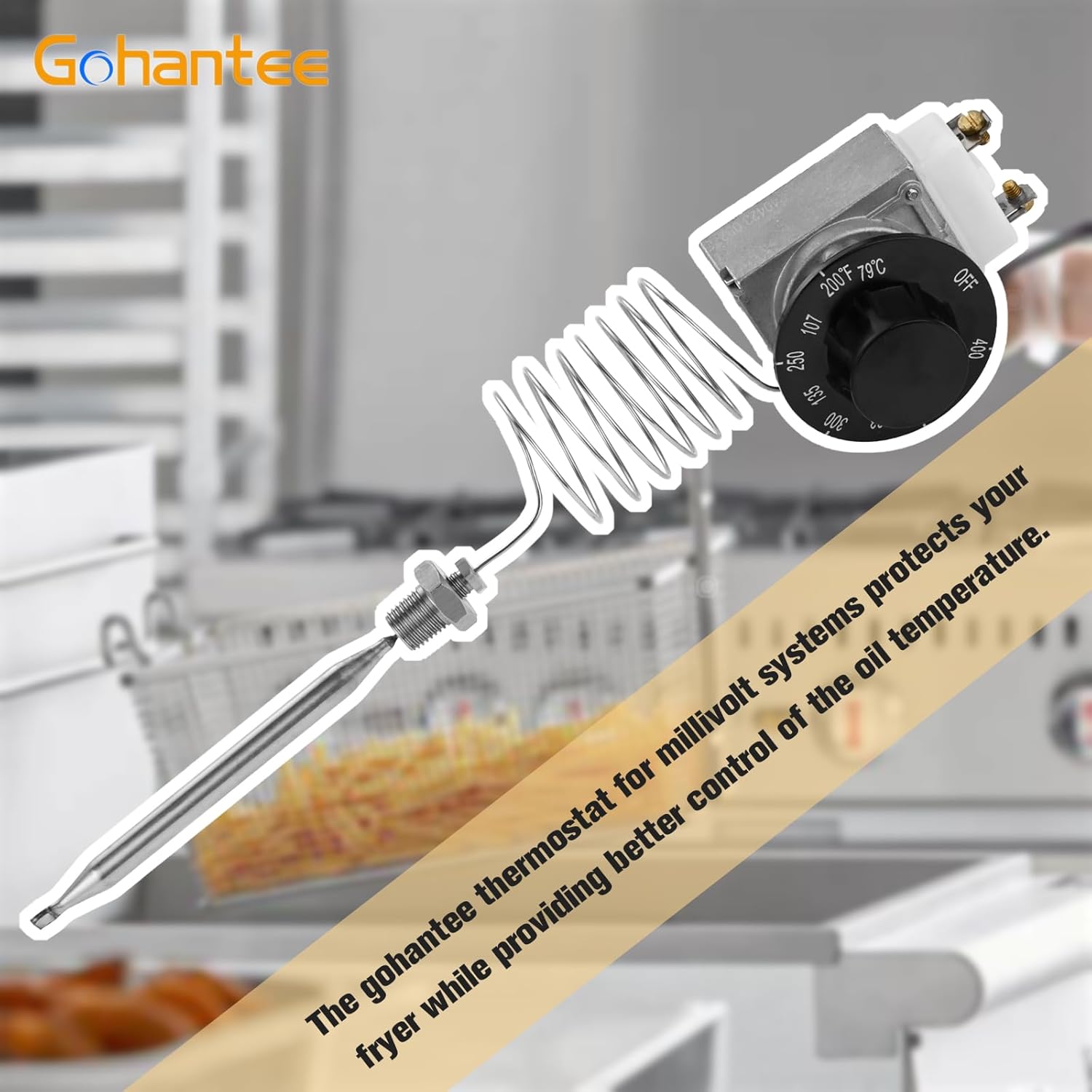

Gohantee’s thermostats are compatible with millivolt systems. The thermostat protects your fryer while providing better control of the oil temperature.

Rated current: 0.67A, 5V DC

Bulb outer diameter: Ø8 mm

Bulb length: 147 mm

Capillary length: 800 mm

Nut thread: 1/4″-18NPT

Temperature range: 200ºF~400ºF (93℃-204℃)

Package Include: 1 pc x Thermostat Valve with Black Temperature Control Knob

Deep Fryer Thermostat with Knob Switch

compatible with PITCO 60125401

compatible with PITCO 60124501

compatible with ANETS P8905-03

compatible with ANETS 60125401

compatible with IMPERIAL 1175

compatible with IMPERIAL 1175-RS

compatible with AMERICAN RANGE A50400

compatible with AMERICAN RANGE 11113

compatible with BLODGETT Z1182151

Single Pole Single Throw Type Switch

200-400ºF Temperature Control Knob

1/4” NPT Connection Nuts

Installation steps

Step 1: Remove the damaged sensing light bulb from the bracket inside the fryer

Step 2: Install a new induction light bulb

Step 3: Fix the sensor bulb and tighten the screws

Step 4: Disconnect the wires from the old thermostat and connect them to the new thermostat

Step 5: Install the knob switch

Step 6: Check if the thermostat is working properly

[Product Features] OE number: 60125401, Fryer Thermostat Replacement: 5300-401 RX-1-36 319 3113 11113 461272 For use in a variety of commercial foodservice fryers. This thermostat is a single pole, single throw (SPST) thermostat for millivolt systems. The thermostat utilizes a sealed reed switch to provide durability and accuracy in the harshest environments.
[Compatible Models] Furnace Deep Frying Thermostat Control Compatible with American Range A50400 AMRA50400, Compatible with ANEP8905-03 P8905-03 Compatible with Dean 1175 1204 2557 807-3515 FM1175 FM1204 FM2557 FM807-3515 Compatible with Frymaster 807-3515 FM807-3515.
[Widely Used] Millivolt Thermostat is compatible with American Range: AF-45 AF25 AF45 AF75; Compatible with Anets: 14VFS SLG40-LP; Compatible with Dean:11G 1212E 2020E 2424E 2424G 32G 714G SCF SM SR TC; Compatible with Frymaster CFD50 CFD60 SCFHD SM20 SR TC; Compatible with Imperial Range: IF IFS IPC IRFS; Compatible with Pitco: 2-SG14C-S/FD 45C+ SG SGC SGM; Compatible with Southbend: GFS P16-FR45 and several others with 1/4′ Mpt Stuff Box Thermostat.
[high Quality]The deep fryer thermostat is made of high quality material, featuring high temperature resistance, durability and long life. 60125401 thermostat capillary around length 36″, temperature range 200 to 400 F, bulb size 3/8″ x 5-5/8″, with 1/4″ nickel-plated stuffing box, rod length 13/16″.
[Easy installation] This deep fryer thermostat simply removes the broken bulb and wires and then installs the new thermostat directly. If you have any questions about deep fryer thermostat with knob switch, you can email us and we will help you within 24 hours.
